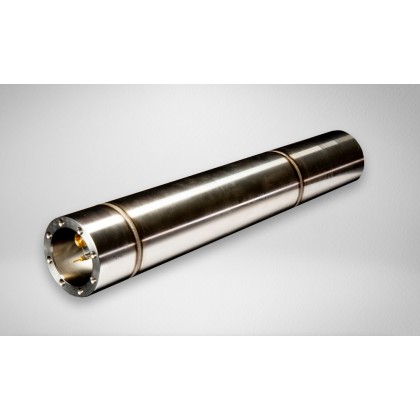

There are four main components to the ACE Single Pressure Sensor system, the sensor and suitable motor adapter are mounted to the pump motor and go downhole, then a High Voltage Interface and a Surface readout are installed at the surface. An additional unit, the Discharge Tubing Assembly, is necessary for the Dual Pressure Sensor system.

Transducer Type:

• Digital Strain Gauge

Temperature Range (Instrument):

• 32°F - 350°F / 0°C - 177°C

Temperature Range (winding transducer):

• 32°F - 600°F / 0°C – 316°C

Pressure Range:

• 0-6,000 PSI, 8,000 PSI & 10,000

Pressure Accuracy:

• 0.1% Typical; 0.2% FS

Pressure Resolution

• 0.1 PSI

Instrument Diameter:

• 3.72”

Instrument Length:

• 18.5"

Instrument Weight:

• 35lbs / 15.9 kG

Instrument Metallurgy:

• 1020 CS
• 316 SS
