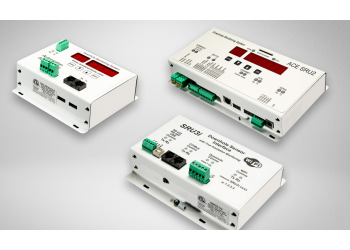

Surface Readout Units
The SRU3i is a new, high speed surface readout unit which provides direct interface between all ACE high reliability, high performance sensors and the GCS VSD and also provides connectivity to all other VSD brands via Modbus.
- Comes in AC and DC power models.
- Sensor readings now appear directly on the GCS drive and are available for all VSD / SCADA control and monitoring functions. No expensive RDCM or hours of RDCM guru programming required!
- Just like the SRU2i, the SRU3i supports insulation resistance monitoring used for ESP run life prediction. ACE ESP sensor insulation resistance monitoring is true, accurate, calibrated measurement used for ESP performance diagnostics and ESP run life predicting intelligent algorithms. “Leakage current” method used by conventional ESP sensors has no value for ESP performance diagnostics as it is a guess taken measurement taken during power up that may be months old. Monitor the true cable & motor resistance condition anytime with ACE ESP sensors to predict and improve motor and cable run life.
- Improve operator comfort and safety as the sensor may be monitored and adjustments made without using the VSD keypad or opening the VSD - you don’t even need to get out of the truck. SRU3i has a built in WiFi server, use your phone or tablet as the SRU3i display! No cell service, mobile data or internet required anywhere in the word.
- Save money, electricity and the environment by replacing up to 4 boxes with one SRU3i.
SRU 2i SURFACE READOUT
The SRU2i provides more advanced functionality than the basic SRU. It may be used with any of the downhole sensor options. In addition to all the functionality of the SRU, SRU2i can provide the downhole data to additional devices via industry standard Modbus RS-232 and RS-485 ports (both optically isolated). Another built-in interface is provided, which connects directly to the ICON industry standard motor controller, and with a suitable adapter cable, it can connect to the older generation legacy Commander/F5 series controllers. The SRU2i also includes Ethernet and USB connectivity, user programmable relays, analog outputs and unlimited datalogging for all reading using removable SD date cards.
SRU3i
The SRU3i is a new, high speed direct interface between all ACE high reliability, high performance sensors and the GCS drive.
ADCM
ADCM is part of the surface readout unit page and stands for Advanced Data Communications Module.
The ADCM is an interface that will directly replace the Baker Hughes RDCM module. It ma be used with third party sensors or any Modbus device such as a flowmeter, allowing the device to interface directly into a VSD. The ADCM operates by impersonating a RDCM module but with more intelligence. The VSD will display readings as it registers as if they came from an RDCM.
Surface Readout - Standard Unit
Surface Readout (SRU) This may be used with any of the downhole sensor options. The surface device serves several functions. First, it provides signal power to the downhole device, decodes and verifies encrypted information from the downhole unit and then displays the results on an alpha-numeric LED Display
